Industrial Ethernet/RS485(422) Converter

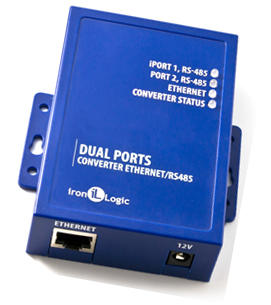

Z-397 IP converter

Advantages:

	Access to RS-485(422) devices by Ethernet
	Two independent RS-485 ports (one with galvanic isolation till 1000V)
	Supports TCP/IP
	Connection possibilities - "client" or/and "server"
	Supports NVT (Network Virtual Terminal) protocol
	Available drivers for main operating systems ( virtual COM port )
	Configurable as average device on COM port
	Parameters setting by USB port (UMS) or TELNET protocol
	Firmware update supported
	Mechanical lock for any parameters changing
	Error correction on RS485 line transmission
	Indication of working mode

Technical specification:

Ehternet: Interface Ethernet RJ45 (10BASE-T, Ethernet II и IEEE 802.3) Protocols IP, ARP, TCP, TELNET, ICMP, UDP, DHCP RS485: Quantity of lines RS-485/RS-422 - 2/1 Speed - до 115200 бит/сек Galvanic isolation of line one - 1 kV USB: Port - USB type B Version - USB 2.0 Mode - Full-Speed Class - Mass-storage device Working conditions: Supply voltage - 8-18V DC or 7-14V AC Supply current - less than 100 мА @12V DC Storage temperature - -40°C ...+125°C Working temperature - 0°C ...+ 70°C Humidity (w/o condensate) - 5%...95% Casing - ABS plastic Weight - 100g Dimensions (мм) - 100x85x30

Examples:

Z-397 IP was designed for cenection with devices working on RS485(422) using TCP/IP on remote PC. Whith this device you can setup and cofigure controllers Z-5R Net , Z-5R Net(8000) , MATRIX-II Net , Guard Net .
Possible to use free drivers as example HW VSP , build by http://www.hw-group.com .
