Simplest network controller
Type: Z-5R Net

Advantages:

	Cost effective
	Quick installation and connection
	Standalone and network operation
	Protection against wrong connection
	Select the type of lock
	* Mode ACCEPT
	* Mode Blocking

Technical specification:

Power supply: 8-18V DC
Current consumption: 20 mA
Number of connected readers: 2 pcs.
Type (protocol) connected readers: Dallas Touch Memory
FET transistor outputs: 1pc.
Switching current: 5A
Number of keys / cards (max): 2021pcs.
Number of recorded events (max): 2048pcs.
Communication protocol controllers: RS485
Communication rate: 19200 baud/57600baud
The maximum line length: 1200m
Operating temperature: -40 ° C to +50 ° C (excluding battery)
Size (mm): 65х65х18

Modes:

*ACCEPT- adding each card to memory so further this card will be allowed to pass.
*Blocking - owner of the blocking card can choose to allow ar deny entrance of other persons.

Examples:

We recomend to use following ( software ).
Additionally following equipment could be used:

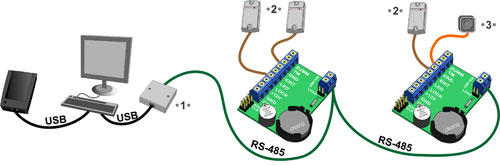

•1• Converter Z-397 Guard
•2• readers
•3• exit button
-network controller
-electromechanical/electromagnetic lock
-external beeper
-external LED
-door opening sensor

Circuit diagrams in PDF, "time keeping registration"
for electromagnetic lock
for electromeshanical lock
