RFID reader 13,56 MHz & 125 KHz.
Type: Matrix III RD-ALL

Advantages:

	Simultaneous dual-band 13,56 MHz & 125KHz
	The choice of communication interfaces
	Moisture-and dust-proof case
	Attractive price
	Configuration or firmware update

Technical specification:

Operating frequency: 13,56 MHz & 125KHz simultaneously
Working with cards: Mifare-UL (reading and writing)
Working with cards, keyfobs: EM Marine, HID ProxCard II, Mifare (read only numbers)
Reading range: 4-10 cm
Power supply: 8 - 18 V DC
Current consumption: 135mA (max)
Sound / light indication: signal buzzer, two-color LED
Operating temperature (room): -30 ° C +40 ° C
Case Material: ABS plastic
Output Interface: RS-232, RS485, Wiegand 26, Dallas Touch Memory
Size (mm): 115h75h22
Encryption (cryptographic) function has

Examples:

Designed to work with online and offline systems, security and access control, as well as payment and loyalty system. Reader, the logic of which can vary depending on your application, by changing the firmware (firmware) via RS-232. Available free firmware version can be viewed and get here . If there is no solution for you, you can always consult with our support for a firmware under your specific task.

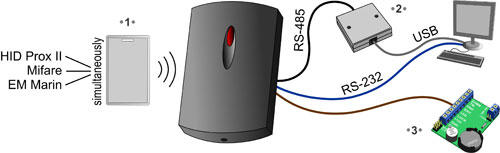

RS-232 and RS485 allows you to connect the reader to the PC, directly and at a distance of up to 1200 meters through converter Z-397 Guard . For the product complimentary development kit SDK-RDAll , you can quickly learn to work with the product.
