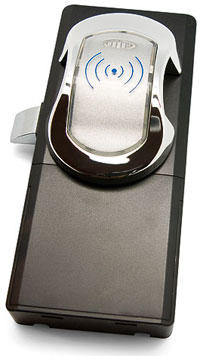

Electromechanical lock for furniture
Type: Z-395 ET

Advantages:

	Low price
	Installation on wooden furniture
	Low power consumption
	Simple installation and setup
	Light and sound indication
	4 operating modes

Technical specification:

Operating frequency: 125 KHz Working with maps / bracelet / key fobs: EM Marine, Temic, HID PROX II Number of ordinary keys / cards (max): 24 pcs. Number of master keys / cards (max): 7 pc Built-in power independent memory (EEPROM) Reading range: 2-4 cm Current consumption: 30uA (standby) Sound / light indication: buzzer, two-color LED Operating temperature: +5 ° C to +40 ° C Case material: metal, ABS plastic The size of the outdoor unit (mm): 85h54h18 The size of the internal unit (mm): 145x63x21
Mode “Fitness” - open locker can be locked with any key and then opened with that one.
Mode “Logic” - open locker can be locked with any key and then opened with that one and at the same time writes number of locker into the key.
Mode “Ordinary” - locker can be opened only with keys recorded in memory >24pcs.
Mode “Safe deposit” - for opening need to use all keys recorder in memory >24pcs.

Examples:

Electronic lock Z-395 ET - is combined with a contactless reader standalone controller and electromechanical lock. Lock powered by 4 AA-size batteries. Compact size, four modes of operation, ease of installation, programming and maintenance. This is the perfect solution to control access to different storage locations: lockers, changing rooms, office furniture and business equipment. Particularly wide application locks were in such objects as SPA-salons, water parks, fitness centers, swimming pools. Additional equipment: • software Lock's Manager • Adapter RF1996 • External supply module • Steel cover • Bracelets • Covers for usage on metalic doors • Module of the lock
