Reader 125КHz
Type: MATRIX V (120)

Advantages:

	Long range card reader (up to 120 cm.)
	Watertight enclosure and connectors
	Autotune
	Reading through the wall

Technical specification:

Operating frequency: 125 KHz
Working with cards, keyfobs: EM Marine
Reading range: (05 ELR) - up to 120 cm
Output Interface: RS-485, Wiegand26
Power supply: 12-14 V DC
Current consumption: 700mA
Sound / light indication: signal buzzer, two LEDs
Operating temperature: -20 ° C +50 ° C
Antenna weight: 5.3 kg.
Weight of the electronic module: 1,2 kg.
Antenna size (mm): 600x450x25
The size of the electronic module (mm):220х120х40

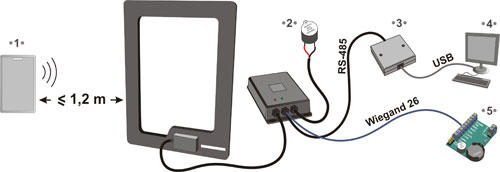

Examples:

Range card reader EM Marin to 120cm. The product is ideal for parking garage and cooperatives, as well as for other applications where you need to use a long range reading (identification of animals, logistics, etc.).

Set elements:

Antenna
Electronic module
Wire antenna
Power cable / communication
Wire for external buzzer
